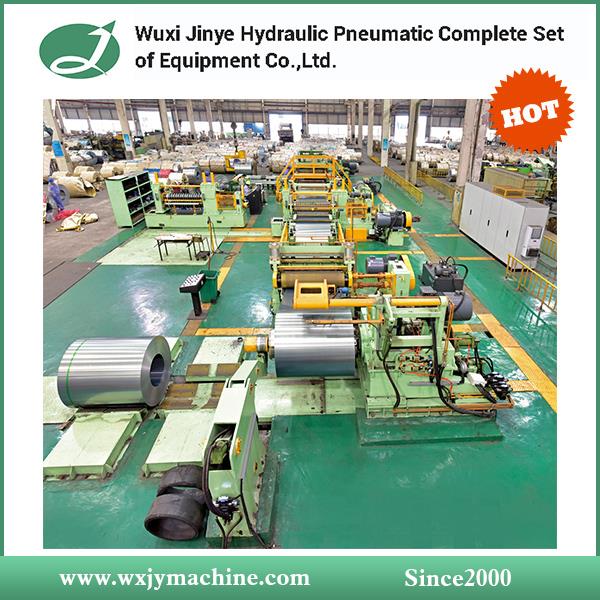

JY(0.3-3)x1250 Decoiler Slitter Coiler Line

JY(0.3-3)x1250 Decoiler Slitter Coiler Line introduction According to our rich experiences in slitting line market, (0.3-3)x1250 capacity slitting line is popular, it is our hot sale product. Each year we can sell about 5 lines. Because thickness of most colored steel plates, galvanized steel...

JY(0.3-3)x1250 Decoiler Slitter Coiler Line introduction

According to our rich experiences in slitting line market, (0.3-3)x1250 capacity slitting line is popular, it is our hot sale product. Each year we can sell about 5 lines. Because thickness of most colored steel plates, galvanized steel plates and cold rolled steel plates is below 3mm, coil width is within 48-50’’(1219-1270mm). The 3 x 1250 slitting machine supply steel coil strips to high frequency welded pipe mills and cold roll forming machines.

Technical parameters

Raw material

Material of coils: low carbon steel, galvanized plate, colored steel plate etc.

Strip thickness: 0.6~3.0mm

Strip width: 300~1300mm

Inner diameter of coils: Φ508mm

Outer diameter of coils: Φ1800mm

Max. coil weight: 15000Kg

Machine

Slitting capacity: 0.7-1.2mm, max 20strips; 1.2-2.0mm, max 15strips; 2-3mm, max 10strips

Minimum slit strip width: 30mm

Slitting speed: max 120m/min

Total installation power: about 250KW

Land occupation: about 25m length, 9m width

Input direction: customer decides

Power source: 380V, 50Hz, 3Ph

tensioner and recoiler, 3x1300 slitting line.jpg

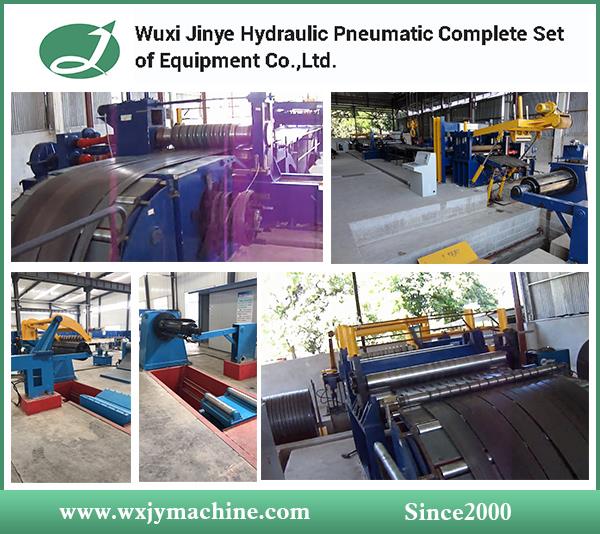

Composition of the slitting line

Coil-loading——Single-mandrel

uncoiling —— Coil-end-feeding & shoveling —— Double-roller pinch feeding / three-roller leveling —— End-cutting —— Hole Accumulator 1 —— Strip-aligning —— Disk shearing —— Scrap reeling —— Hole Accumulator 2 —— Pre-separator / Tensioner —— Separating, Recoiling —— Coils-discharging —— Hydraulic control —— Electric control

Slitting accessories

Disc cutters: D330×d220×T10mm, material: 6CrW2Si, HRC56-58°, 22pcs

Disc separators: D180×d85x 5mm, material: 65Mn quenching treatment, 35pcs

Complete length of rubber sealings: 2,600mm

Complete sets of steel cutter spacers: D260 x d220

5pieces 1m x 1m felt pad

Spacer thickness

1mm

1.6mm

3mm

8mm

0.95mm

1.2mm

1.7mm

4mm

9mm

1.1mm

1.3mm

1.8mm

5mm

10mm

40mm

1.4mm

1.9mm

6mm

20mm

50mm

1.5mm

2mm

7mm

30mm



The quantity of above    thickness of cutter spacers: 12pcs for each size.

FAQ

1.What is your minimum order quantity, can you send me samples?

A: Our minimum order is 1 set machine, each machine is customerized, thus we don’t have sample to send, however, we can send you catalog, warmly welcome you to visit our company.

2.About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

A: The warranty period of our machine is 12 months. Within the period, if machine problem is due to quality fault, we will replace parts for free. The moment we know the machine problem from customer, we will firstly tell the customer the fastest available schedule, then bring solution or send out parts as scheduled.

3.Why choose us?

A: Our machine performances are the most convincing evidences for you to choose us. We achieve the performances by “careful, diligent” efforts day by day. Besides hard efforts, we know well what machines we can supply and what customers are suitable to use our machines. We would like to give our customers the best guidance and suggestions, to let customers know how to choose. To serve customers in this machine field is our mission, we are always here to serve, not far from you.

4.Are you a manufacturer, trading company or a third party?

A: We are a manufacturer established in 2000.
