High Speed Automatic Slitting Line

High precision high speed automatic slitting line introduction The high speed slitting line works at speed over 80m/min, available to small thickness metal coil plate slitting. Usually the plate thickness is no more than 6mm. The slitting line automatically work after strip threading....

High precision high speed automatic slitting line introduction

The high speed slitting line works at speed over 80m/min, available to small thickness metal coil plate slitting. Usually the plate thickness is no more than 6mm.

The slitting line automatically work after strip threading.

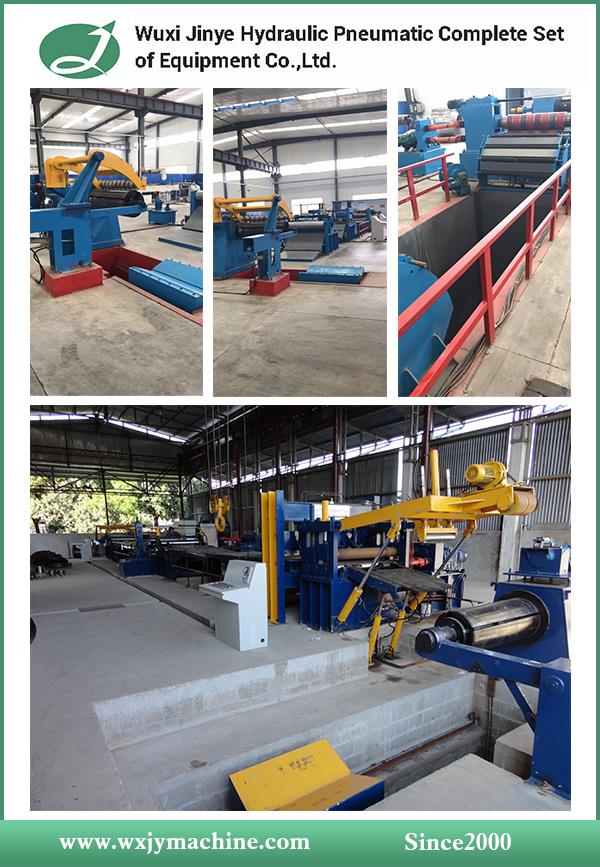

Composition of high speed automatic slitting line

Coil loading car, uncoiler, coil-head opener (including snubber arm, peeler plate, etc), pinch feeder & pre-leveler, shearing machine, accumulator pit 1, side guide, slitter, scrap winder, pit accumulator 2, tensioner and pre separator, overarm separator and recoiler, coils unloading car.

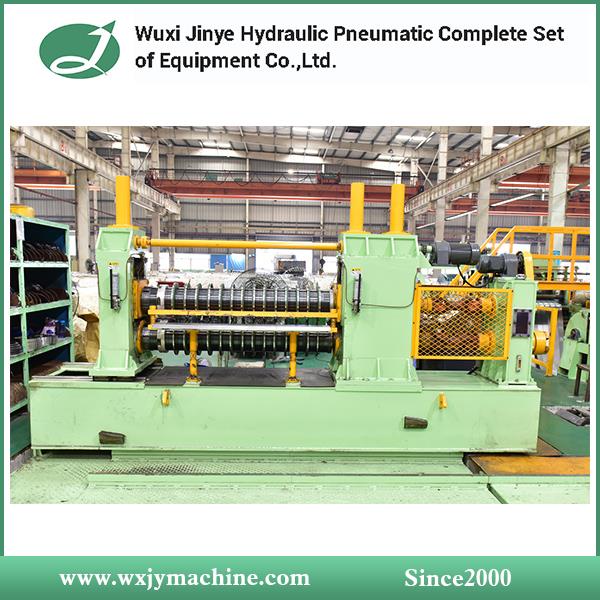

High speed slitting machine.jpg

Characteristics of our slitting line

1. We design the complete slitting line catering to client requirements, considering the function of each part smoothly satisfy the finished coils.

2. The machine structure must be robust enough.

3.All the critical rollers, mandrels, gears must be tempered and quenched to ensure strength and durability.

4. All motors are made by reliable famous companies

5. Hydraulic valves are Taiwan made.

6. Pneumatic parts are Airtac.

7. Electric parts are Zhengtai or Schneider.

8. Motor controllers are Parker DC controller or Yaskawa AC frequency converter.

High speed slitting parameters

Model

Steel coil thickness range

Steel coil width range

Slitting speed (maximum)

Installation power

JY-2x1000

0.2-2

300-1000

150m/min

210KW

JY-3x1250

0.3-3

300-1250

120m/min

270KW

JY-4x1600

0.4-4

500-1600

120m/min

300KW

JY-6x1600

0.6-6

500-1600

120m/min

370KW

Performance

We supply the high speed slitting lines to:

Iraq: 4 x 1600 120m/min slitting line, two sets.

Saudi Arabia: 3 X 1300 150m/min slitting line, one set.

6 x 1600 100m/min slitting line, one set.

Egypt: 6 x 1600 120m/min dual shift slitting line, two sets.

Costa Rica: 3.2 x 1300 120m/min slitting line, one set.

Our Advantages

a. Extensive rich experiences:

We are specialized in the steel plate processing machines especially slitting machine & cut to length machines for over 15 years.

b. Fully customerized design and production:

Each machine is designed and made fully according to customer’s requirements, to reach complete customerization, we usually face to face discuss with customers confirming each technical detail, or communicate with customers by emails or online conversation with each technical document checked and confirmed by customers.

Our technicians make drawings of each machine according to signed specification.

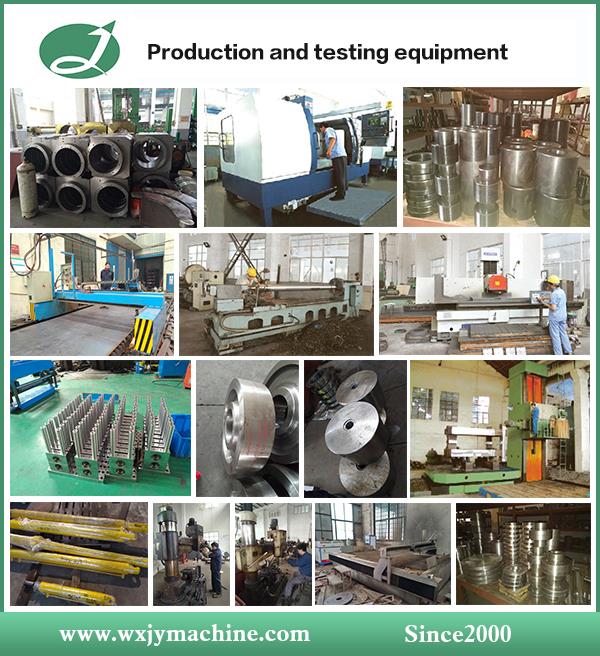

The machining, heat treatment, grinding, assembly of each part are strictly processed under production schedule.

c. High quality raw material and standard parts:

We choose high quality materials from reliable supply channel.

We select famous parts like hydraulic valves, pneumatic parts, electric parts, bearings, bolts, etc. We are capable of designing and making the hydraulic system.

d. Strict testing procedures:

We check the parameters of each unit according to order details.

We test each motor, each electric cabinet, each valve.

We measure each machine dimensions and weight for shipment.

Commercial terms

Delivery time: 90-120days production time since receipt of down payment.

Type and number of containers: three 40 feet containers.

Installation & Commissioning

We send technicians to help installation and responsible for commissioning, it takes about one month.

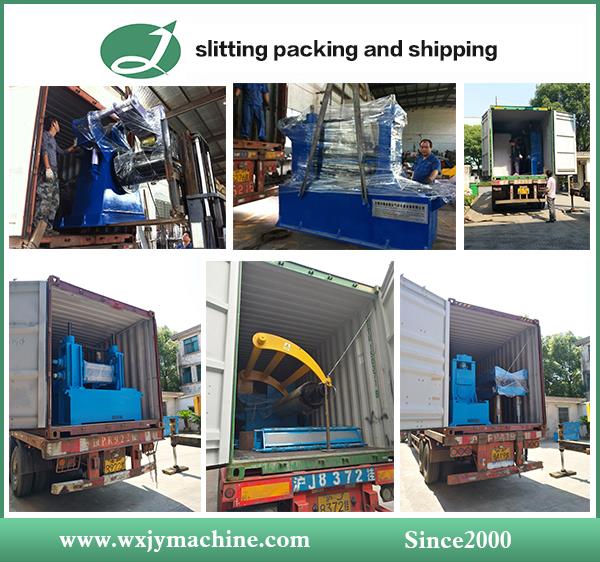

Packaging & Delivery

Packaging Details machine in nude, parts in boxes

Delivery Time within 90 days


FAQ

1.Are you a manufacturer, trading company or a third party?

A: We are a manufacturer established in 2000.

2.How can I get to your factory?

A: Our city Wuxi is near to Shanghai. You can get off plane at Pudong or Hongqiao airport in Shanghai, then come to Wuxi by fast train for 40minutes. You can take fast train from Beijing to Wuxi, 5 hours. You can come to Wuxi Shuofang Airport by plane. We can pick you up from Wuxi stations, airport, even in Shanghai airport.

3.What is your minimum order quantity, can you send me samples?

A: Our minimum order is 1 set machine, each machine is customerized, thus we don’t have sample to send, however, we can send you catalog, warmly welcome you to visit our company.
