Introduction:
It is the developing trend that special steel is becoming more and more popular. Special steel usually have special properties such as high-strength (silicon steel, manganese steel, stainless steel, etc), conductivity (silicon steel plate), thermostability, anti-corrosion. Steel strength is closely relative with the specification of slitting line design, so we specially describe high-strength coil slitting line.
High strength: δs ≥345Mpa, Q345、Q390、Q420、Q460、Q500、Q550、Q620、Q690, stainless steel.
High strength steel requires slitting line structure to be much stronger, so that steel slitting line tools to need to be harder. We would like to explain the unique characteristics by practical examples.

Characteristics:
1. For the same thickness of high strength steel with normal carbon steel, it requires machine strength to increase a lot, bigger motors, bigger rollers & shafts as well as bigger steel slitting line tools.
2. Material of slitting knives should be harder: SKD-11, H13, SLD, Hardness ≥HRC60.
3. Slitting speed shall not be as high as plain carbon steel coil slitting line.

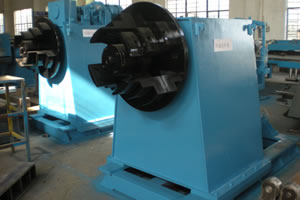

High Strength Steel Slitting Line

Exemplary Cases:
1. JY-(0.3~3) ×1250mm Silicon Steel Slitting Line
Input coils: silicon steel .
Strip thickness: (0.3-3) mm
Strip width: 300~1250mm
Inner diameter of coils: Φ508mm, Φ610mm
Max.outer diameter of coils: Φ1800mm
Max.coil weight: 20,000kg
Slitting shaft: Φ220
Material of disc cutter: SKD-11(Cr12MoV), HRC60-62.
Slitting Motor: DC 90KW.
Recoiling spindle: Φ508×1550mm
Recoiling motor: DC 110KW.
Electric control: Eurotherm 590 DC speed driver + PLC
Slitting speed: (0~100) m/min, adjustable

2. JY-(2~8) ×1800mm HSLA—Steel Slitting Line
Input coils:HSLA—Steel Slitting Line .
Strip thickness: (2~8) mm
Strip width: 800~1800mm
Inner diameter of coils: Φ508mm, Φ610mm, Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 30000kgs
Slitting shaft: Φ300mm
Slitting motor: 160KW DC
Recoiling spindle: Φ610×1900mm
Recoiling motor: 200KW DC
Slitting speed: (0~60) m/min, adjustable

3. JY-(1~5) ×1600mm Stainless Steel Slitting Line
Input coils: stainless steel
Strip thickness: (1-5) mm
Strip width: 600~1600 mm
Inner diameter of coils: Φ508mm, Φ610mm, Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 25000kgs
Slitting shaft: Φ260
Slitting motor: 132KW DC motor
Material of disc cutter: H13
Recoiling spindle: Φ508
Recoiling motor: 160KW DC motor.
Slitting speed: (0~60) m/min, adjustable
