Introduction:
Capacity of middle thick steel coil slitting line is mainly used to slit steel coils of thickness 0.6~5 mm, 1~6 mm, 2-8mm or 3~10mm. And for steel coils with width: 600~1600 mm, 800~1800mm or 800~2000mm into narrower baby coils. This steel slitter is widely used for proving steel strip coils for cold rolling mill, welded pipe mill, roll forming machine, etc.

Advantages & Characteristics:
1.Weight of middle thick steel coils usually with weight up to about 30Tons, in this case, double mandrel uncoiler is necessary to load so heavy coils. Double mandrel decoiler can be made to three steps respectively for three kinds of international standard inner diameter coils Φ508mm, Φ610mm, Φ760mm. At the same time, Double mandrel decoiler can made to be double cones without steps that can support and decoil a wide range of different ID coils from Φ480-800mm for the special steel slitting machine.

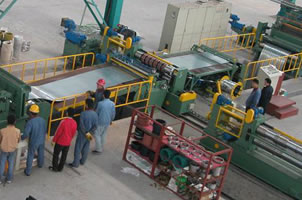

Middle Thick Slitting Line

2.There are one or two hole accumulators in the middle thick coil slitting line, which depends on minimum thickness, slitting speed, etc factors. One pit accumulator always lies after slitter and before tensioner.
3.According to functions & solidity request of each steel slitter unit, we adopt suitable structure and use proper and enough material to make each steel coil slitting line unit.
4.Good material and precise sizes of disc knives, spacers and rubber rings on slitting shaft for our steel slitting machine can make sure little burrs, little cambers(±0.10mm/m), no stickiness to knives and precise slit width(+/-0.05mm).
5.Edge scrap reeler of our steel slitter uses torque motor, making sure evenly and synchronously wind edge scraps up.
6.To change disc knives fast, double steel slitter can be chosen. When one steel slitting machine is working, workers can install knives on the other slitter, then just exchange locations of two steel coil slitting line to continue work.
7.Double press rollers are installed on each equipment sequently following each hole accumulator, in case strip head falls in hole while feeding strip head through steel coil slitting line.
8.Coils separating & pressing-down bracket is installed on recoiler, hydraulically driven, press on recoiling block tight and automatically move up while recoiling diameter becomes bigger.

The detail specification of Steel Slitter as follows:

1. JY-(0.6~5)×1500mm Steel Coil Slitting Line

Input coils: HR/CR carbon steel, colored steel, galvanized steel, etc.
Steel Slitting Machine Strip thickness: (0.6-5) mm
Strip width: 500~1500mm
Steel Slitter Inner diameter of coils: Φ508mm, Φ610mm, Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 30000kg
Steel Slitter shaft: Φ250 x 1550mm
Material of disc cutter: 6CrW2Si, HRC55-58.
Steel Slitting Machine Motor: DC 110KW, with Eurotherm 590 DC speed driver.
Recoiling spindle: Φ508×1550mm
Recoiling motor: DC 132KW, with Eurotherm 590 DC speed driver.
Steel Slitter speed: (0~80) m/min, adjustable

2. JY-(1~6) ×1600mm Steel Coil Slitting Line

Input coils: HR/CR carbon steel, colored steel, galvanized steel, etc.
Steel Slitter Strip thickness: (1~6) mm
Strip width: 600~1600mm
Inner diameter of coils: Φ508mm, Φ610mm, Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 30000kg
Slitting shaft: Φ260 x 1650mm
Steel Slitting Machine motor: 110KW DC
Recoiling spindle: Φ508×1700mm
Recoiling motor: 132KW DC
Steel Slitter speed: (0~70) m/min, adjustable

3. YJ-(2~8)×1800mm Steel Coil Slitting Line

Input coils: carbon steel, color steel, galvanized steel and etc
Strip thickness: (2~8) mm
Strip width: 600~1800 mm
Inner diameter of coils: ≥Φ508mm
Max.outer diameter of coils: Φ2100mm
Steel Slitting Machine Max.coil weight: 35000kgs
Steel Slitter shaft: Φ280 x 1850mm
Slitting motor: 132KW DC motor
Material of disc cutter: 6CrW2Si, HRC56°~58°
Recoiling spindle: Φ508×1900mm
Steel Slitting Machine Recoiling motor: 160KW DC motor.
Slitting speed: (0~80) m/min, adjustable

4.YJ-(3~10)×2000mm Steel Coil Slitting Line

Material of coils: carbon steel, color steel, galvanized steel and etc
Strip thickness: (3~10) mm
Strip width: 800~2000mm
Steel Slitter Inner diameter of coils: ≥Φ508mm
Max.outer diameter of coils: Φ2000mm
Steel Slitting Machine Max.coil weight: 35000kgs
Material of leveling roller: 40Cr
Steel Slitter shaft: Φ300 x 2050mm
Material of disc cutter: 6CrW2Si, HRC 55-58
Steel Slitting Machine Recoiling spindle: Φ610×2100mm
Slitting speed: (0~60) m/min, adjustable

Detail information of Steel Slitter:

Model	Thickness	Width	Coil Weight	Finished slit width	Max Slitting speed
JY-5 x 1500	0.6-5mm	500-1500mm	Max 30T	Min. 40mm	80m/min
JY-6 x 1600	1-6mm	600-1600mm	Max 30T	Min. 50mm	70m/min
JY-8 x 1800	2-8mm	600-1800mm	Max 35T	Min 50mm	80m/min
JY-10 x 2000	3-10mm	800-2000mm	Max 35T	Min 60mm	60m/min
Note: The data in the form just as reference according to general ranges, we always design and make each steel slitting machine according to each customer's specific requirements, so each customer can buy his own well-content line from us.

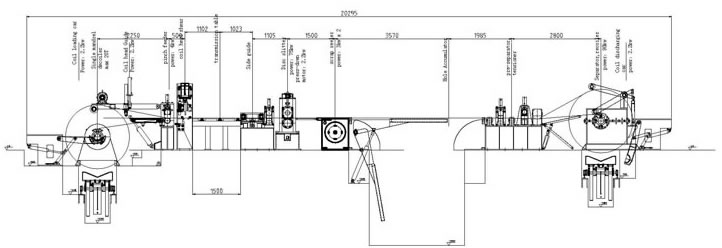

Middle Thick Slitting Line Layout Drawing
